- 2006 - 2015 Honda Civic Si
- 2006 - 2009 S2000
- 2013 - 2015 Acura ILX
- 2009 - 2014 Acura TSX
Notes:
Instructions - Drive By Wire Calibration

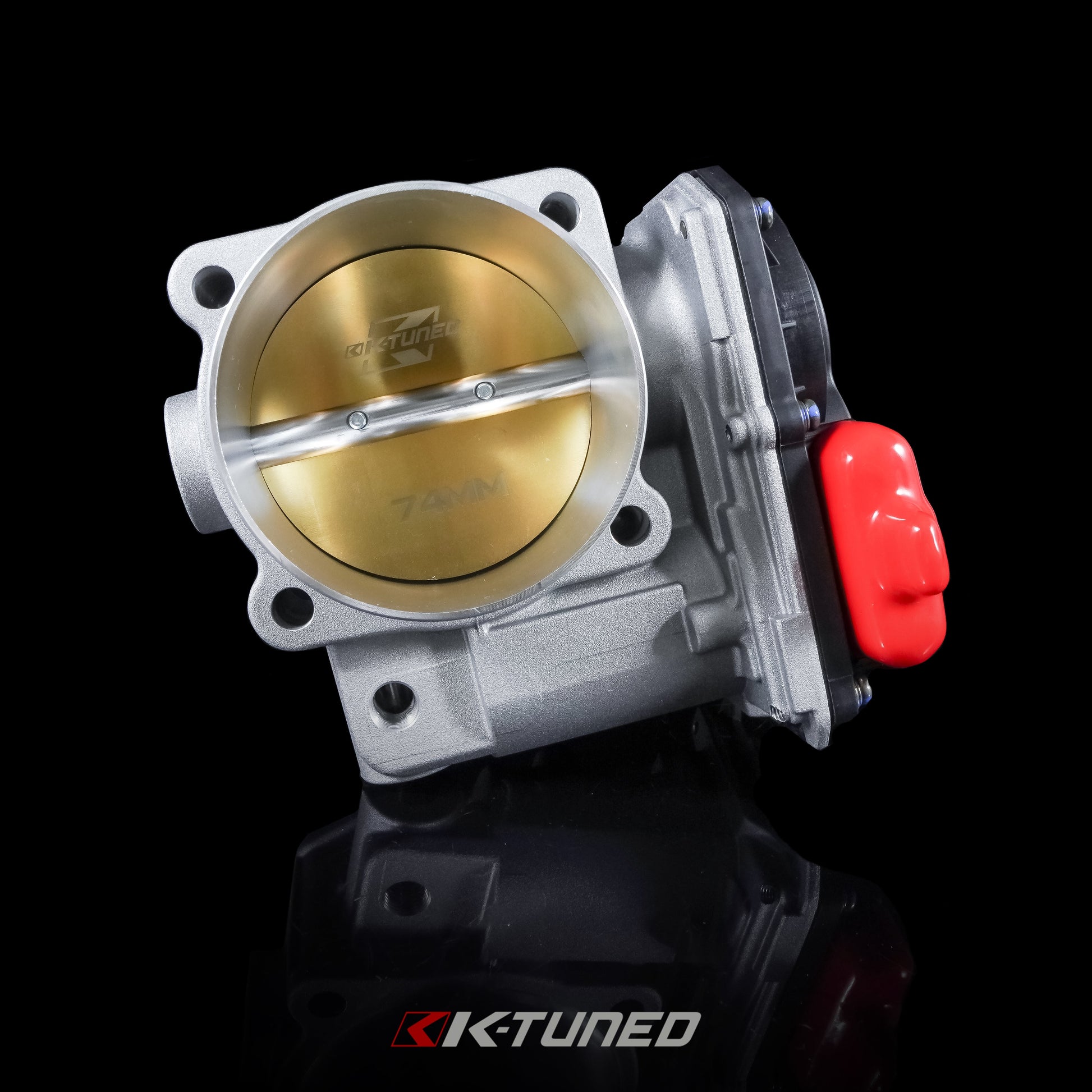

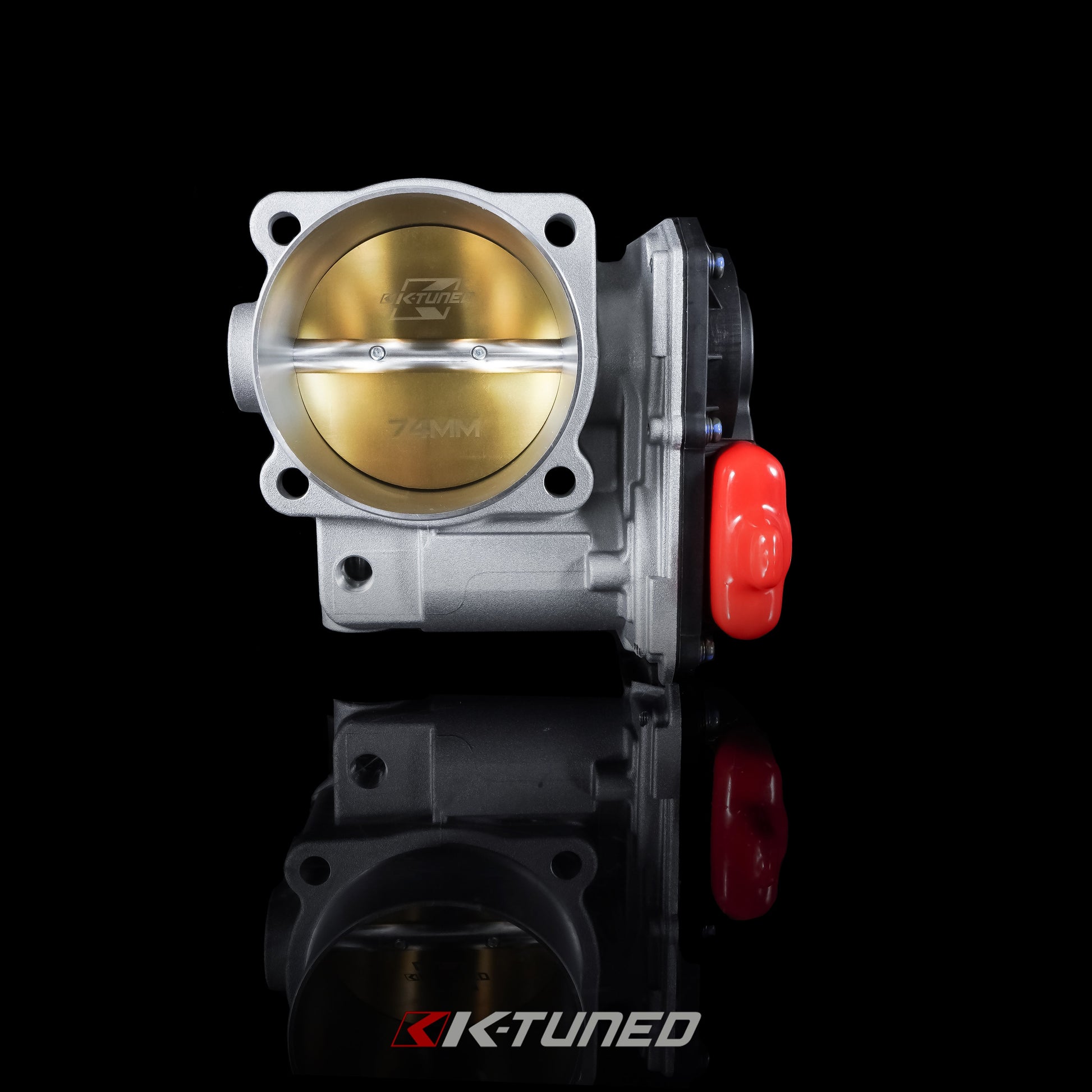

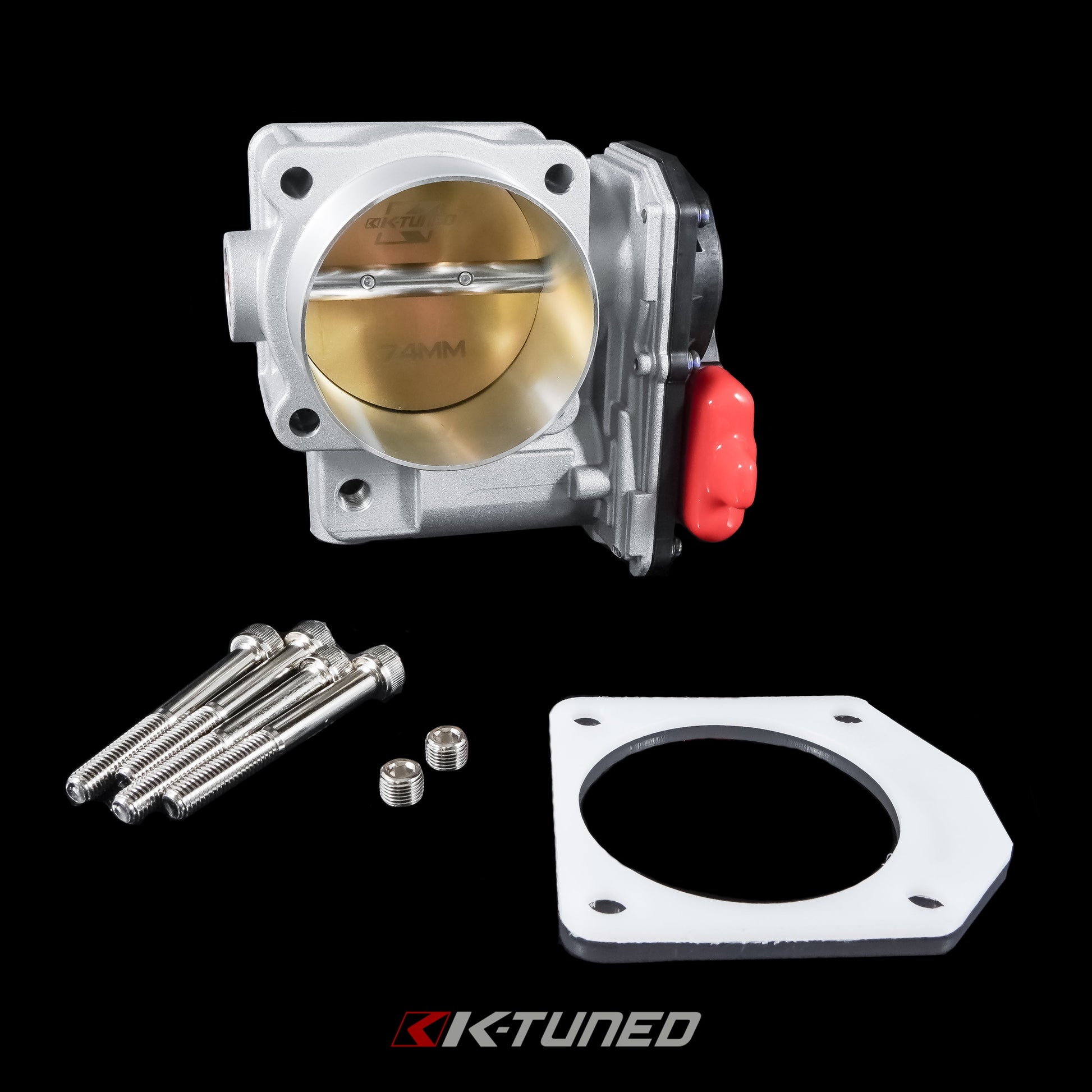

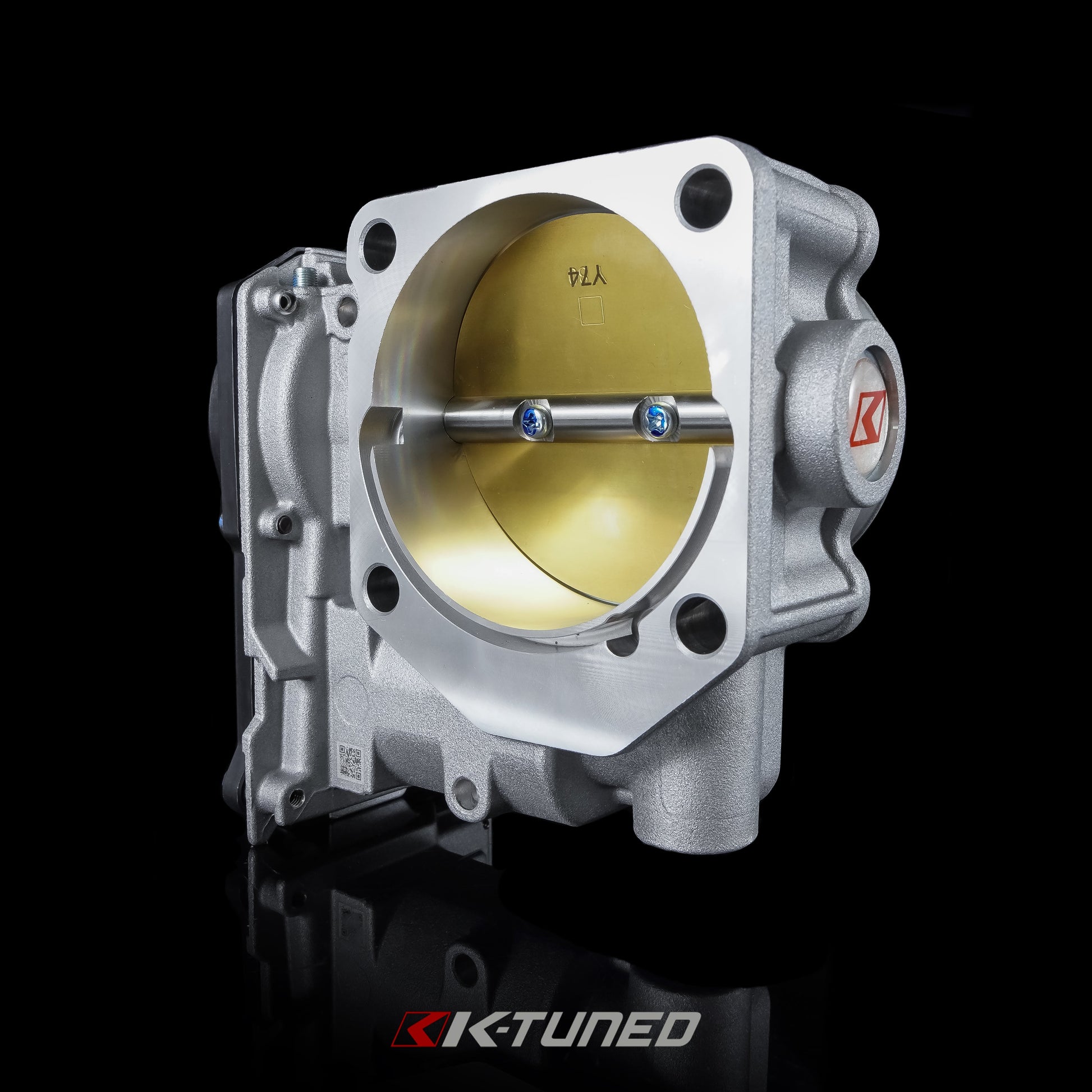

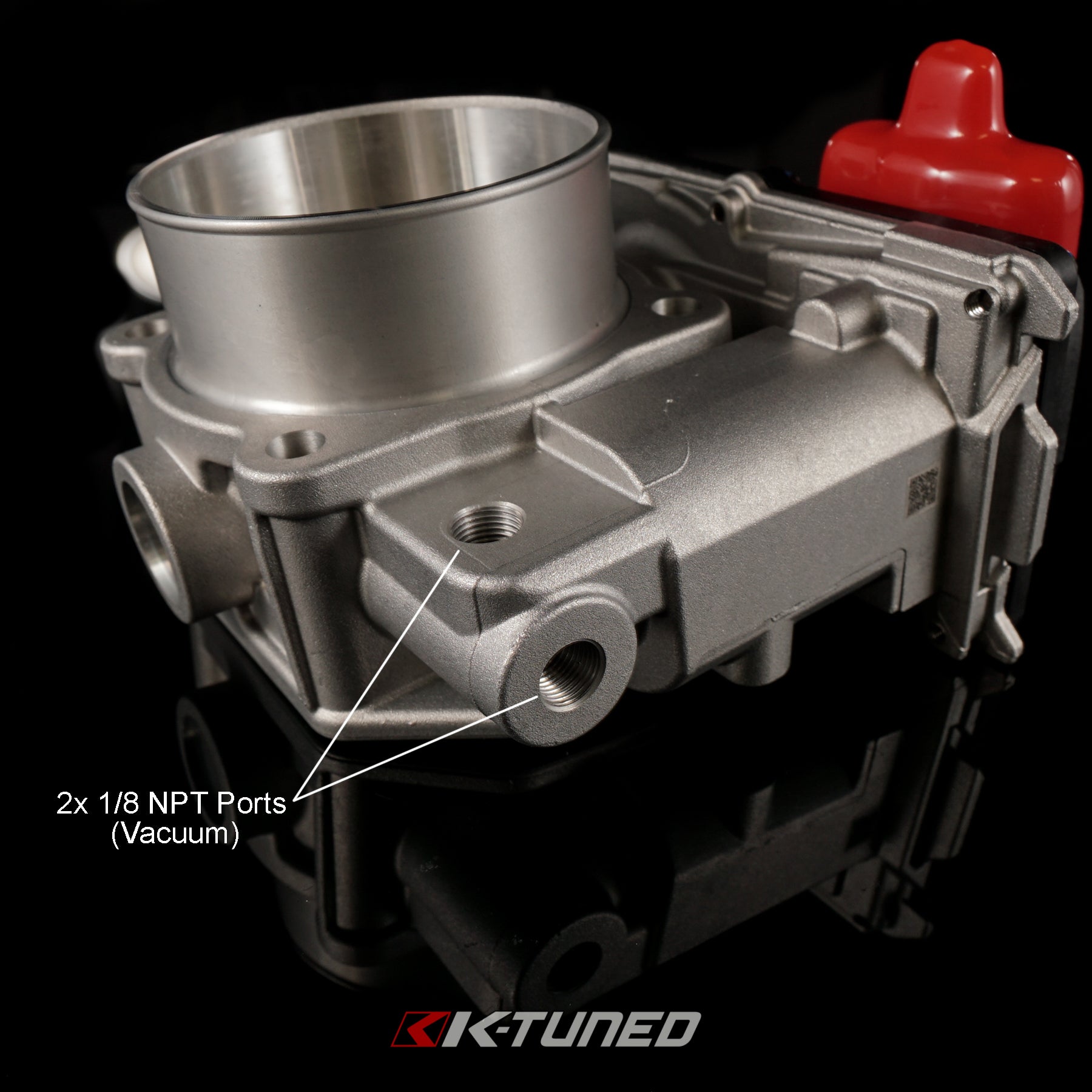

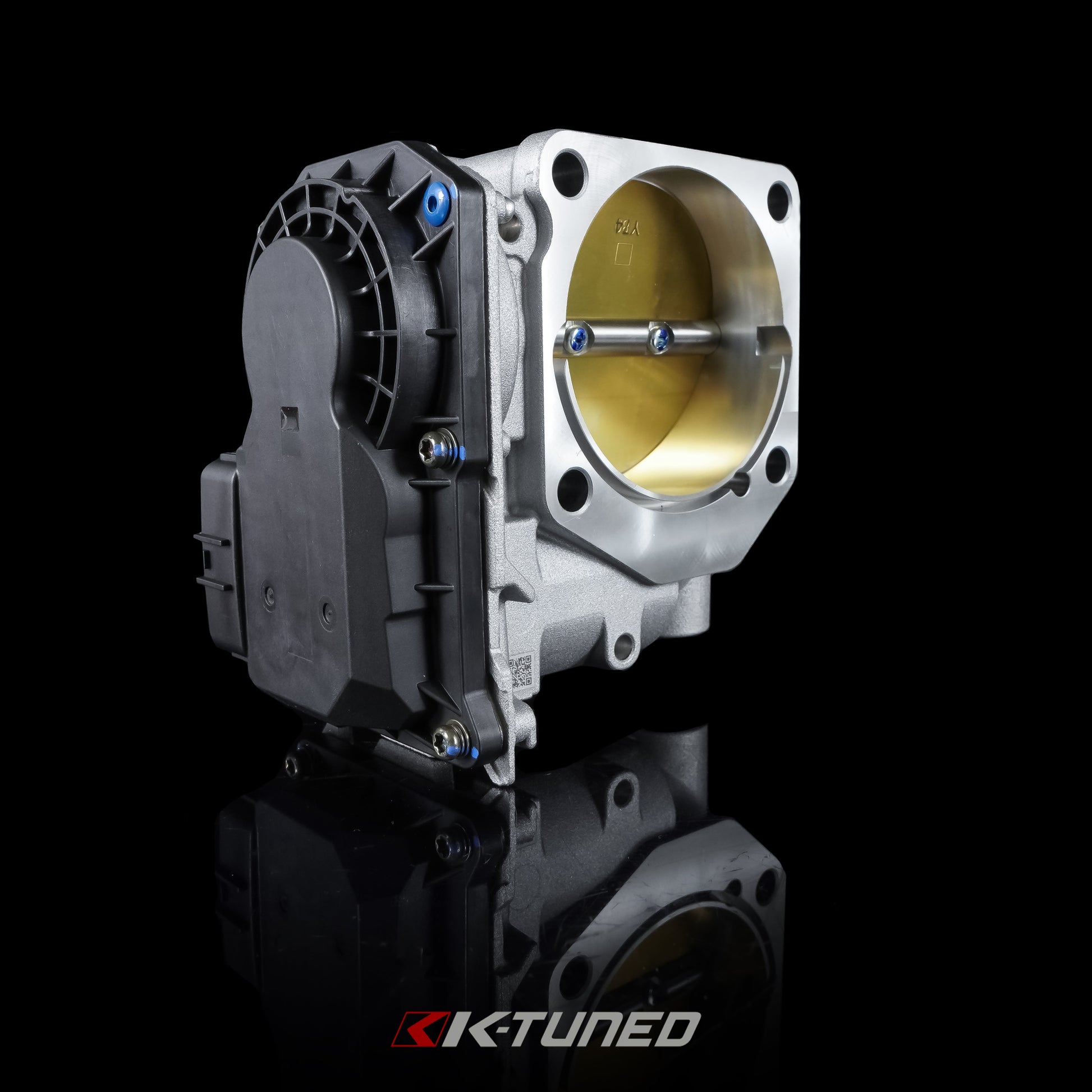

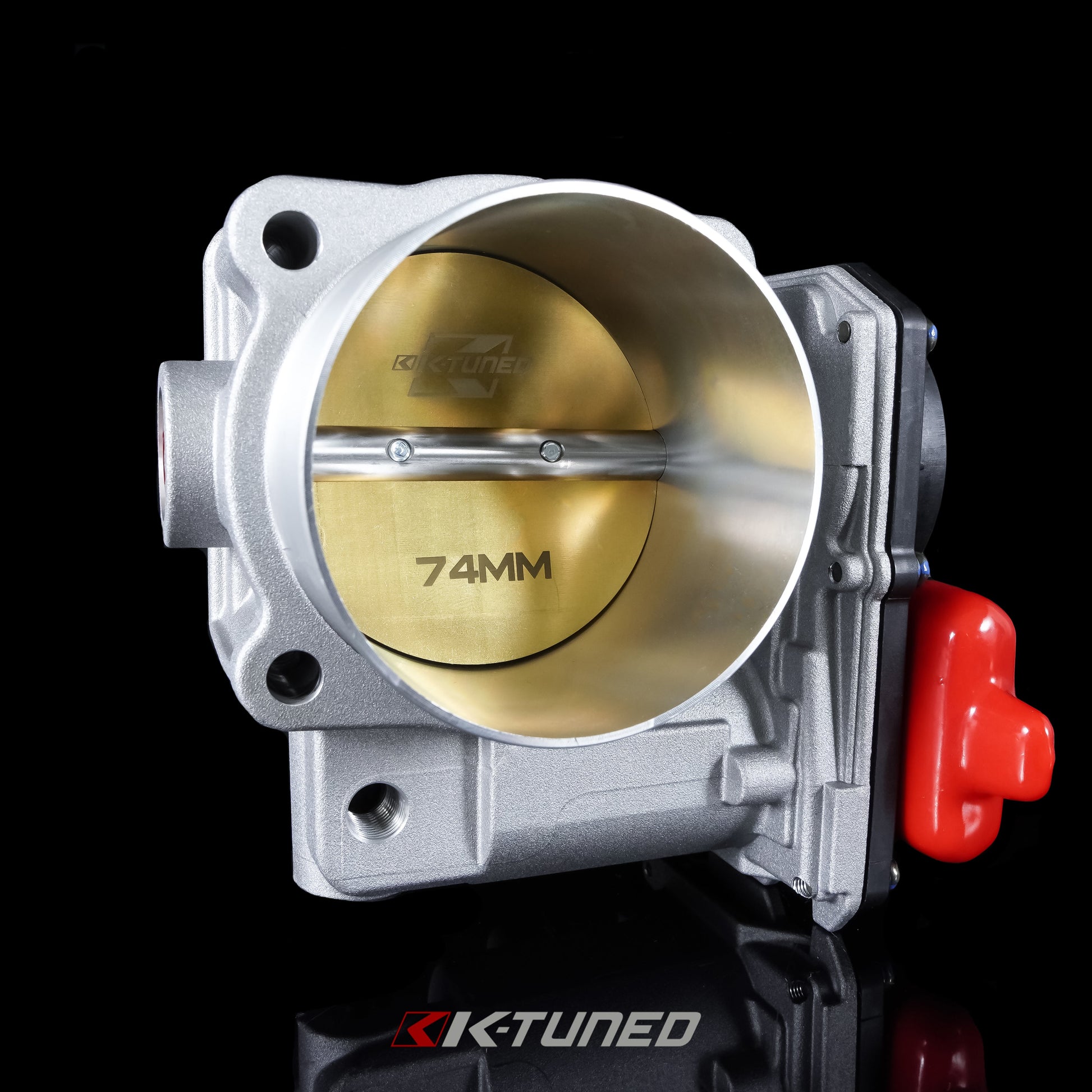

Our 74mm Drive By Wire Throttle Body is direct bolt on to RBC/RRC manifolds and others with the same bolt pattern. It is a true 74mm bore which is larger than ZDX throttle at the butterfly. This throttle body requires some form of engine management (Flashpro) to properly manage the increased airflow. We used the stock configuration and design using an OEM connector to avoid jumper harness. This gives it an almost OEM look when installed. Inside you will see the machined 74mm bore and brass butterfly. There are two 1/8NPT vacuum ports on the bottom which can be used for evap, brake booster, or vacuum reference. Included you will get a thermal gasket, mounting bolts, and two 1/8NPT plugs.
The inlet will use a 3" silicone coupler. You may need to change the coupler to match your intake.
