Bilstein

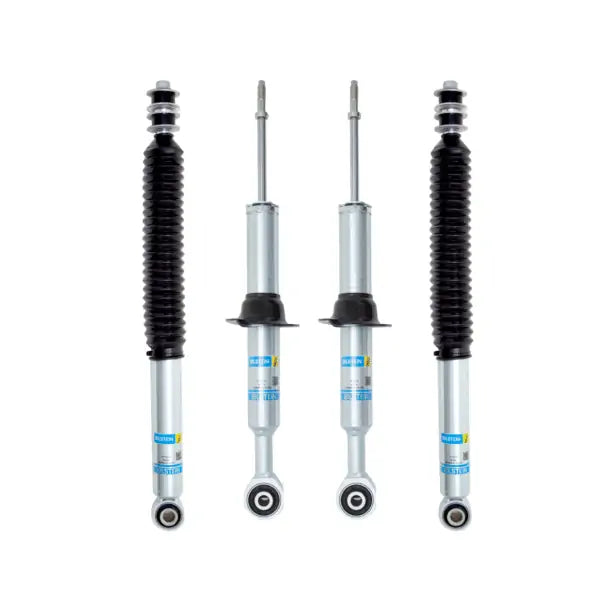

Bilstein B8 5100 (Ride Height Adjustable) 1-2.5″ Front Lift with 0-1.5″ Rear Lift Shocks for 2024+ Toyota Tacoma 4WD
Bilstein B8 5100 (Ride Height Adjustable) 1-2.5″ Front Lift with 0-1.5″ Rear Lift Shocks for 2024+ Toyota Tacoma 4WD
SKU:24-333207_24-333214
Our Winnipeg location and the manufacturer are both out of this part right now. The manufacturer sets restock dates, and they can change.
Awaiting restock from the manufacturer
Ask us about restock timing
Final sale: can't be cancelled or refunded once ordered. Refund policy
Couldn't load pickup availability
Notes:
- Provides 1-2.5″ Front Lift
- With Coil Spring Rear Suspension
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Front Shock:
Collapsed Length (in) :19.24
Extended Length (in) :24.13
Collapsed Length (mm) :488.8
Extended Length (mm) :612.8
Finish :Zinc Plated
Reservoir :No
Body Design :Snap Ring Grooved Body (Coilover)
Body Diameter (id) :46mm
Spring Seat Included :Yes
Adjustable Damping :Non-Adjustable
Rear Shock:
Collapsed Length (in) :15.78
Extended Length (in) :25.44
Collapsed Length (mm) :400.8
Extended Length (mm) :646.2
Finish :Zinc Plated
Reservoir :No
Body Design :Smooth Body (Non-coilover)
Body Diameter (id) :46mm
Spring Seat Included :No
Adjustable Damping :Non-Adjustable
Notes:
- Fits Vehicles With 0-1.5″ Rear Lift
- With Coil Spring Rear Suspension
