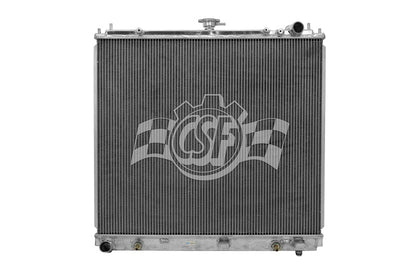

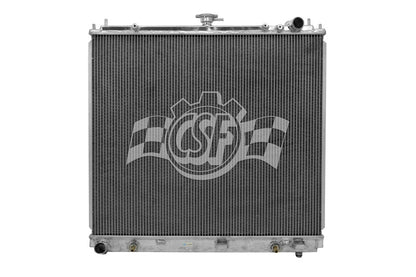

CSF 05-15 Nissan Frontier / 05-12 Nissan Pathfinder / 05-15 Nissan Xterra Radiator

  • Sale
  • $519.99
  • Regular price $558.60

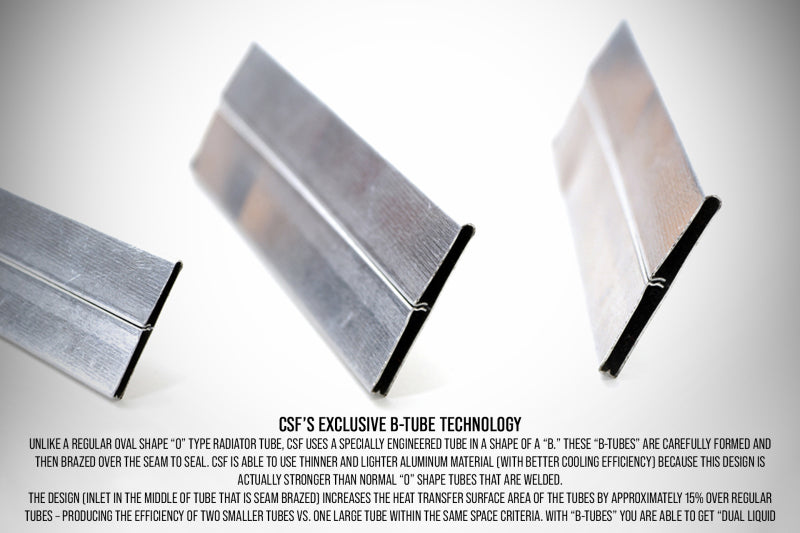

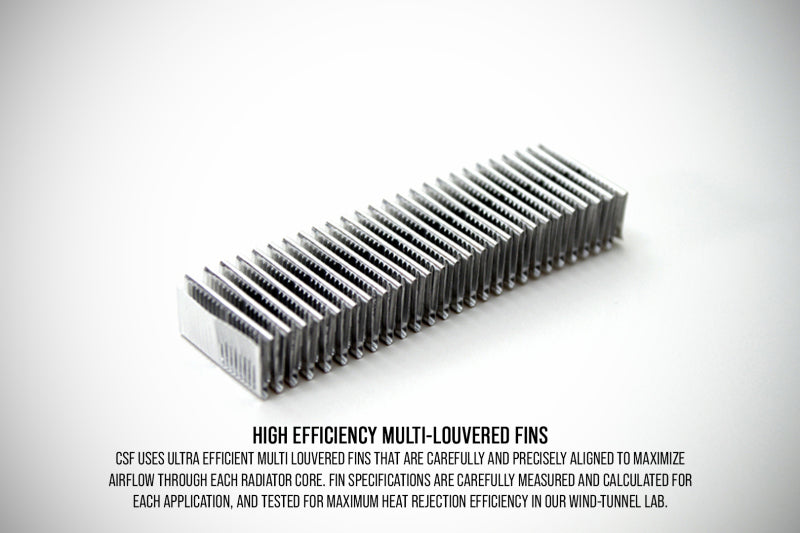

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Nissan SUV running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

This Part Fits:

Year Make Model Submodel
2013-2019 Nissan Frontier Desert Runner
2005-2010 Nissan Frontier LE
2005-2008 Nissan Frontier Nismo Off-Road
2009-2019 Nissan Frontier PRO-4X
2011-2019 Nissan Frontier S
2005-2010 Nissan Frontier SE
2011-2019 Nissan Frontier SL
2011-2019 Nissan Frontier SV
2005-2010 Nissan Frontier XE
2005-2012 Nissan Pathfinder LE
2006-2012 Nissan Pathfinder S
2005-2010 Nissan Pathfinder SE
2005-2009 Nissan Pathfinder SE Off-Road
2011-2012 Nissan Pathfinder Silver Edition
2011-2012 Nissan Pathfinder SV
2005 Nissan Pathfinder XE
2005-2010 Nissan Xterra Off-Road
2011-2015 Nissan Xterra PRO-4X
2005-2015 Nissan Xterra S
2005-2010 Nissan Xterra SE
2006-2015 Nissan Xterra X
