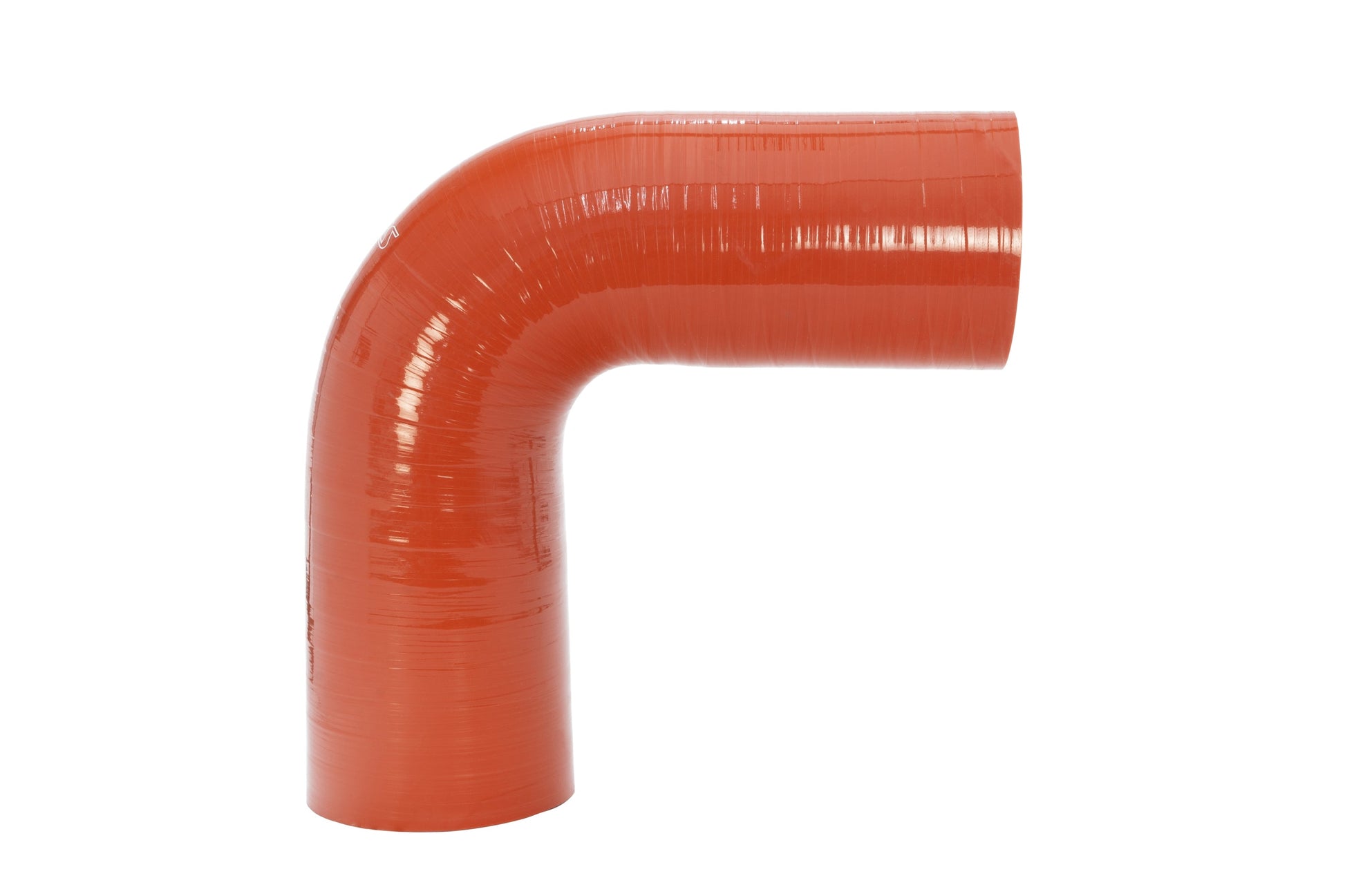

HPS 4" ID, Silicone 90 Degree Elbow Coupler Hose, Ultra High Temp 4-ply Reinforced, Max Temperature Rating 500F

HPS 4" (102mm) ultra high temperature 4-ply aramid reinforced silicone 90 degree elbow coupler hose with 5" leg (part number HTSEC90-400-HOT) meet and exceed SAEJ20 industry standards, ideal for heavy duty pressure connections and provides excellent resistance for ultra high temperature applications. HPS Performance silicone 90 degree bend elbow coupling hose is designed and engineered to meet high performance requirements specified in various industry standards, therefore make it great for marine and industrial use, custom turbo or intercooler piping fabrication, DIY intake or radiator cooling system.

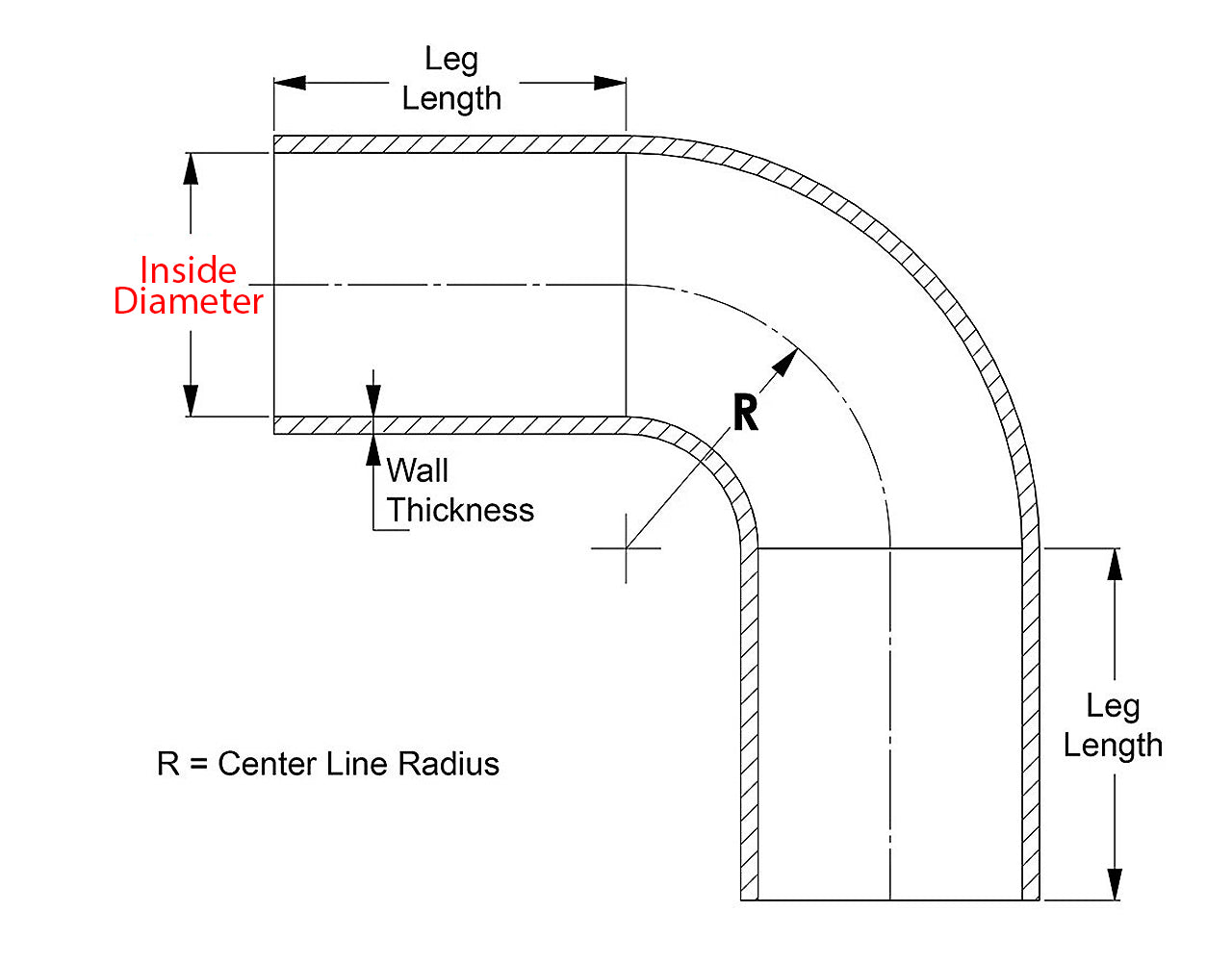

Technical Specification
Product Type: Silicone 90 Degree Elbow Coupler Hose
Part Number: HTSEC90-400-HOT
Hose Inside Diameter: 4" (102mm)
Hose Outside Diameter: 4.41" (112mm)
Leg Length: 5"
Center Line Radius: 4"
Wall Thickness: 5mm +/- 0.5mm
Temperature Range: -65 deg. F to + 500 deg. F (260 deg. C)

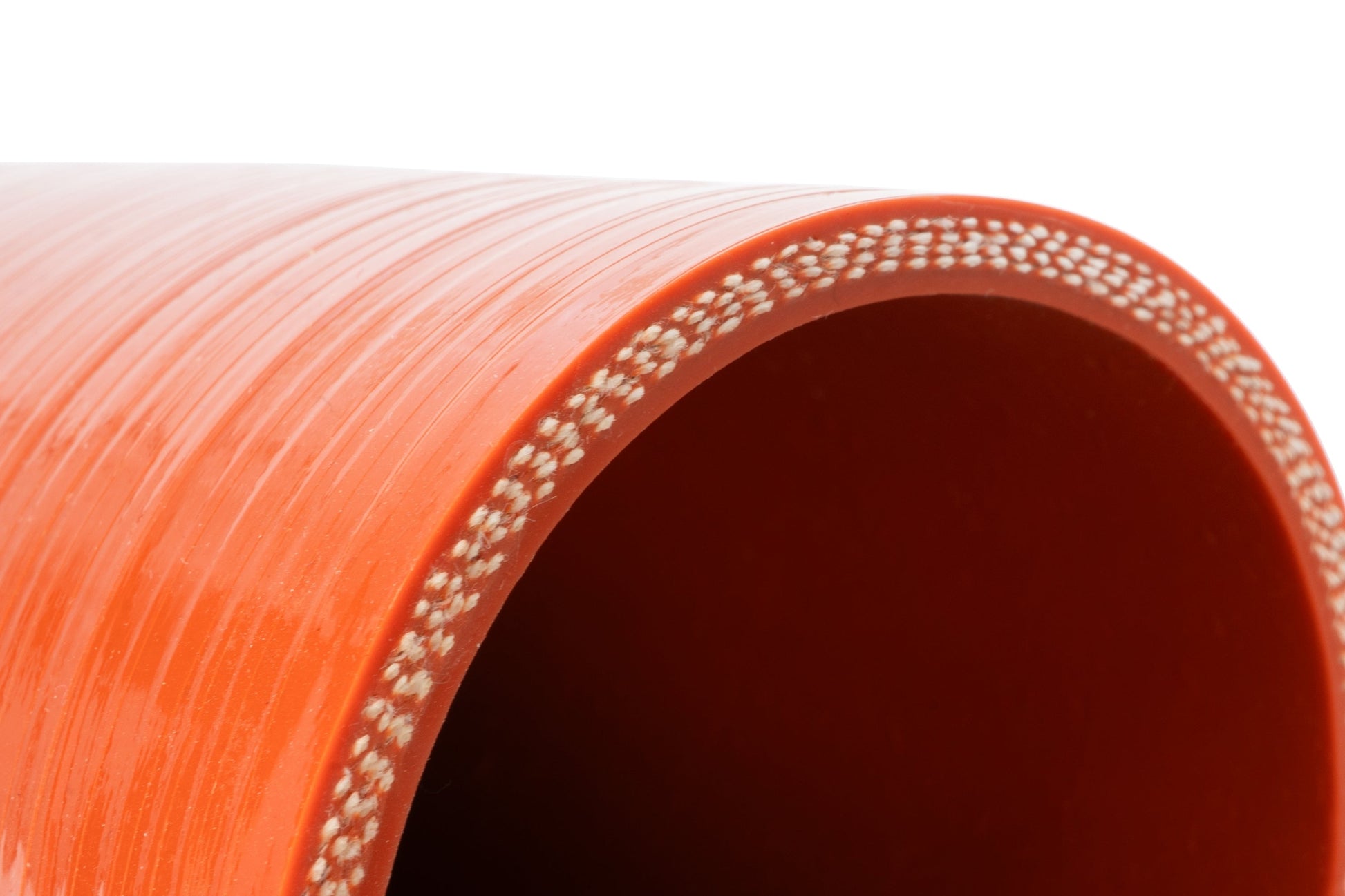

Reinforced Layer: 4-ply aramid
Color: Orange
UV and ozone resistant

Remark: Silicone hose is NOT compatible with fuel or oil.
Silicone hose is compatible with water or anti-freeze such as coolant.
