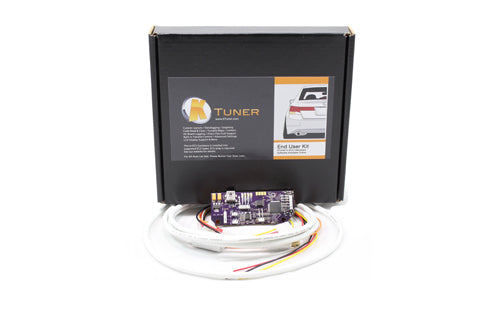

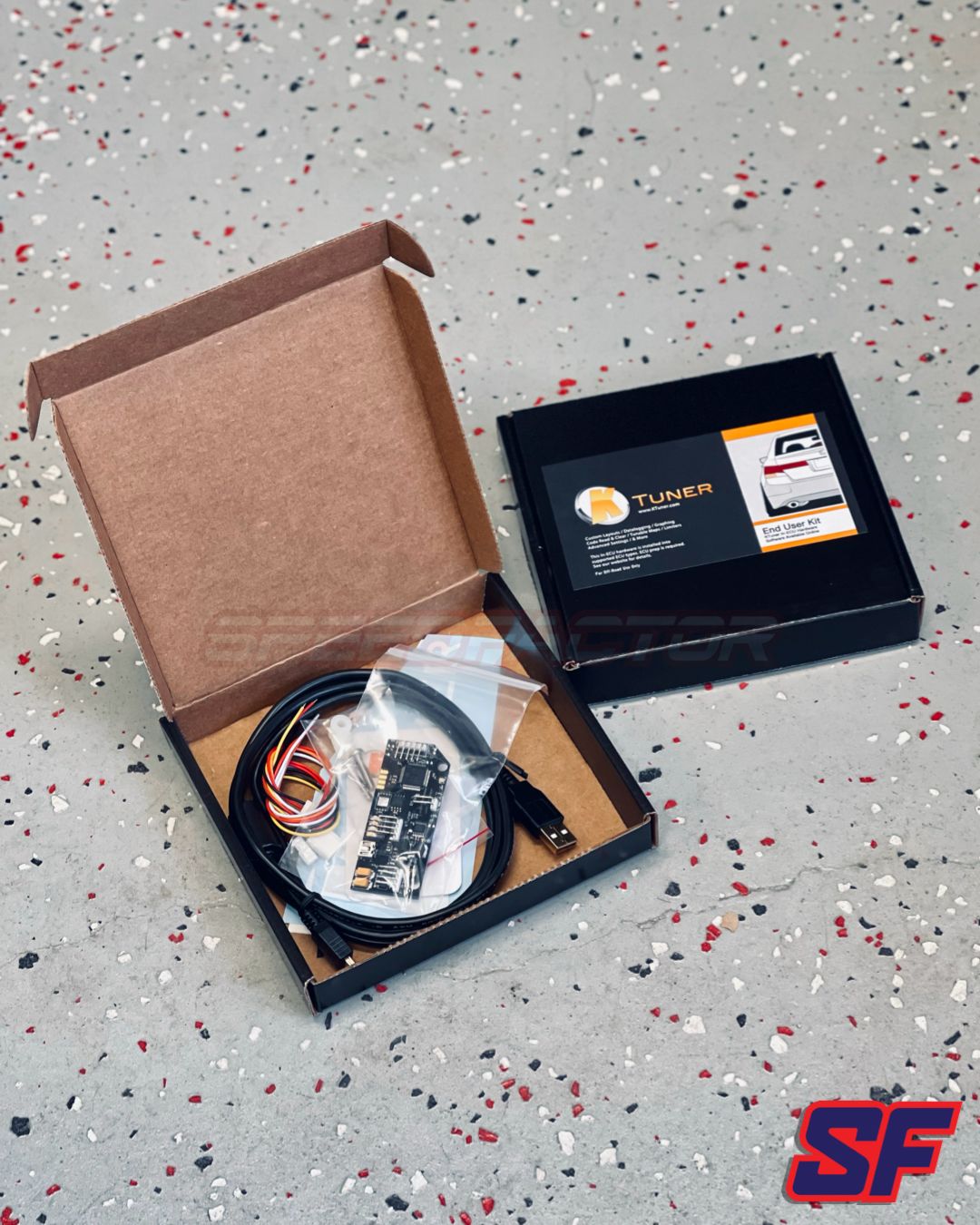

KTuner R1 End User Board - Honda / Acura

Our KTuner In-ECU tuning package comes with a single KTuner hardware unit paired with a single user license for the KTuner software.

• This unit is locked to one ECU and allows you to alter the settings in your ECU.
• Return to factory at any time and unlock the unit to resell.
• Full reading, reflashing, and datalogging.
• On Board Logging (8MB) – RSX/Swap and Accord/TSX only as of 1/10/16
• Direct Flex Fuel input for ethanol content and temperature. RSX/Swap only as of 1/10/16
• Four (4) Analog inputs for 0-5 volt sensor signals. – All platforms.
• Two (2) Speed inputs for VR or HALL sensors. – All platforms.
• Peripheral port for Bluetooth, LCD displays, and additional add-ons.
• KTuner uses direct USB connectivity for fast data transfers.

Please see our list of supported vehicles for platform specific information.

KTuner R1 ECU Supported Vehicle Applications:
(links provided for explicit ECU details)

• *K-series swapped vehicles
• 03-05 Civic Si (requires KTuner conversion harness)
• 02-04 RSX (requires KTuner conversion harness)
• 05-06 RSX Type-S and Base Model
• 04-06 TSX
• 03-05 Accord (4cyl)
• 06-07 Accord (DBW/electric throttle)
• Accord EuroR CL7 (cable driven throttle body)
• Accord EuroR CL9 (DBW/electric throttle)
• 03-06 Element

*For K-series swapped vehicles, KTuner utilizes the 05-06 Honda/Acura ECU's. If you are using an 02-04 RSX engine harness and 02-04 K-swap adapter harness, you will need a KTuner 02-04-to-05-06 ECU adapter harness, available separately.
